Understanding and Implementing Spring Batch: A Comprehensive Guide

Introduction

Spring Batch is a powerful framework designed to process large volumes of data in batch operations. In this blog post, we'll explore what Spring Batch is, how to use it, its benefits, real-life use cases, and when it's appropriate to use. We'll also walk through a hands-on project to give you practical experience.

What is Spring Batch?

Spring Batch is an open-source framework for batch processing – executing a series of jobs automatically without user interaction. It's designed to process large volumes of records, including logging/tracing, transaction management, job processing statistics, job restart, and resource management.

How to Use Spring Batch

To use Spring Batch, you typically follow these steps:

1. 1. Set up your Spring Boot project with Spring Batch dependencies.
2. 2. Configure a Job that represents your batch process.
3. 3. Define one or more Steps within your job.
4. 4. Implement ItemReader, ItemProcessor, and ItemWriter for each step.
5. 5. Configure your data source and transaction manager.
6. 6. Run your batch job.

Benefits of Spring Batch

1. 1. Scalability: Can handle large-scale batch processing.
2. 2. Robustness: Provides restart, retry, and skip functionalities.
3. 3. Flexibility: Supports various input and output formats.
4. 4. Performance: Offers optimization techniques like parallel processing.
5. 5. Monitoring: Provides detailed metrics and statistics.
6. 6. Integration: Easily integrates with other Spring projects.

Real-life Use Cases

1. 1. Financial systems: Processing end-of-day transactions, generating reports.
2. 2. E-commerce: Updating product prices, processing orders.
3. 3. Data migration: Moving data between systems or databases.
4. 4. ETL processes: Extracting, transforming, and loading data warehouses.
5. 5. Billing systems: Generating monthly bills for customers.
6. 6. Log processing: Analyzing and archiving large log files.

When to Use Spring Batch

Consider using Spring Batch when:

• You need to process large volumes of data.
• You have long-running, scheduled, or periodic tasks.
• You require robust error handling and restartability.
• You need to parallelize processing for performance.
• You want to maintain transaction integrity during batch processing.

Hands-on Project: CSV to Database Importer

Let's create a simple project that reads data from a CSV file and imports it into a database. This is a common use case for batch processing.

Step 1: Set up the project

Create a new Spring Boot project with Spring Batch and H2 database dependencies.

Step 2: Create the model

Create a Person class to represent the data:

public class Person {
    private String firstName;
    private String lastName;
    private String email;

    // Getters and setters
}

Step 3: Configure the job

//Create a configuration class:

@Configuration
@EnableBatchProcessing
public class BatchConfig {
    @Autowired
    public JobBuilderFactory jobBuilderFactory;

    @Autowired
    public StepBuilderFactory stepBuilderFactory;

    @Bean
    public Job importPersonJob(Step step1) {
        return jobBuilderFactory.get("importPersonJob")
            .incrementer(new RunIdIncrementer())
            .flow(step1)
            .end()
            .build();
    }

    @Bean
    public Step step1(ItemReader<Person> reader, ItemProcessor<Person, Person> processor, ItemWriter<Person> writer) {
        return stepBuilderFactory.get("step1")
            .<Person, Person>chunk(10)
            .reader(reader)
            .processor(processor)
            .writer(writer)
            .build();
    }
}

Step 4: Implement ItemReader, ItemProcessor, and ItemWriter

Here's a basic implementation:

@Bean
public FlatFileItemReader<Person> reader() {
    return new FlatFileItemReaderBuilder<Person>()
        .name("personItemReader")
        .resource(new ClassPathResource("sample-data.csv"))
        .delimited()
        .names(new String[]{"firstName", "lastName", "email"})
        .fieldSetMapper(new BeanWrapperFieldSetMapper<>() {{
            setTargetType(Person.class);
        }})
        .build();
}

@Bean
public PersonItemProcessor processor() {
    return new PersonItemProcessor();
}

@Bean
public JdbcBatchItemWriter<Person> writer(DataSource dataSource) {
    return new JdbcBatchItemWriterBuilder<Person>()
        .itemSqlParameterSourceProvider(new BeanPropertyItemSqlParameterSourceProvider<>())
        .sql("INSERT INTO people (first_name, last_name, email) VALUES (:firstName, :lastName, :email)")
        .dataSource(dataSource)
        .build();
}

Step 5: Run the job

Create a CommandLineRunner to run the job:

@SpringBootApplication
public class BatchProcessingApplication {
    @Autowired
    JobLauncher jobLauncher;

    @Autowired
    Job importPersonJob;

    public static void main(String[] args) {
        SpringApplication.run(BatchProcessingApplication.class, args);
    }

    @Bean
    public CommandLineRunner run() {
        return (args) -> {
            JobParameters params = new JobParametersBuilder()
                .addString("JobID", String.valueOf(System.currentTimeMillis()))
                .toJobParameters();
            jobLauncher.run(importPersonJob, params);
        };
    }
}

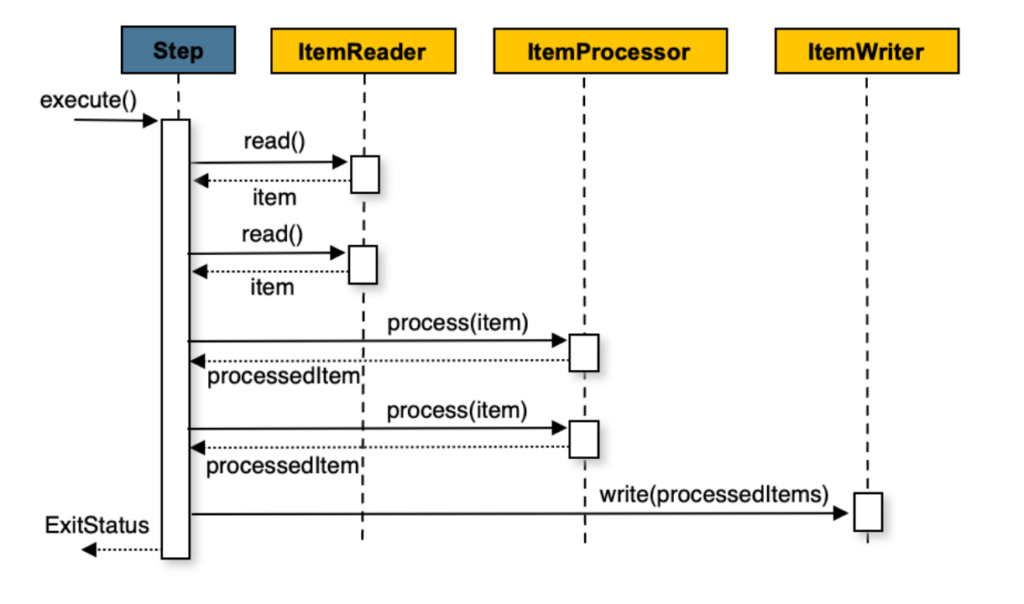

This project demonstrates a basic use of Spring Batch to read data from a CSV file and write it to a database. It showcases the key components of a Spring Batch job: Job, Step, ItemReader, ItemProcessor, and ItemWriter.

Conclusion

Spring Batch is a powerful tool for handling large-scale data processing tasks. Its robustness, flexibility, and integration with the Spring ecosystem make it an excellent choice for many batch processing scenarios. By understanding its capabilities and use cases, you can leverage Spring Batch to build efficient, scalable batch applications.
